Background Line 4 PXE Diskless iSCSI Boot Windows 7 from SANDeploy Boot Server Background Line 5

We can use any disk clone software, in this guide, we use Ghost32 (Ghost64 for x64 bit system).

Launch Ghost32 (Ghost64)

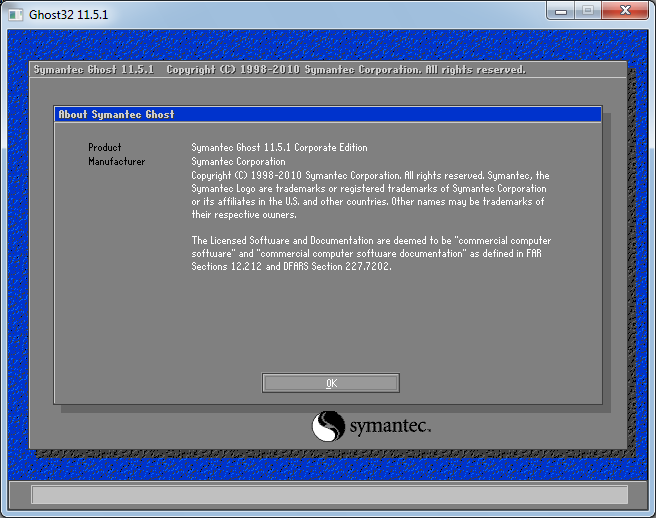

Press the OK button to continue.

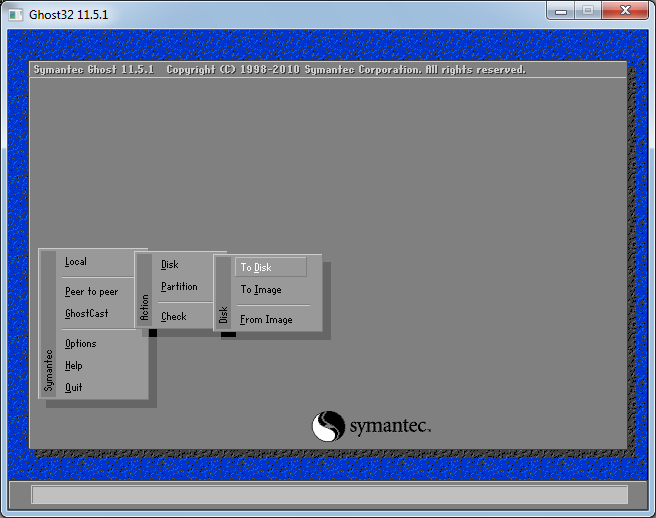

Select Disk To Disk Clone.

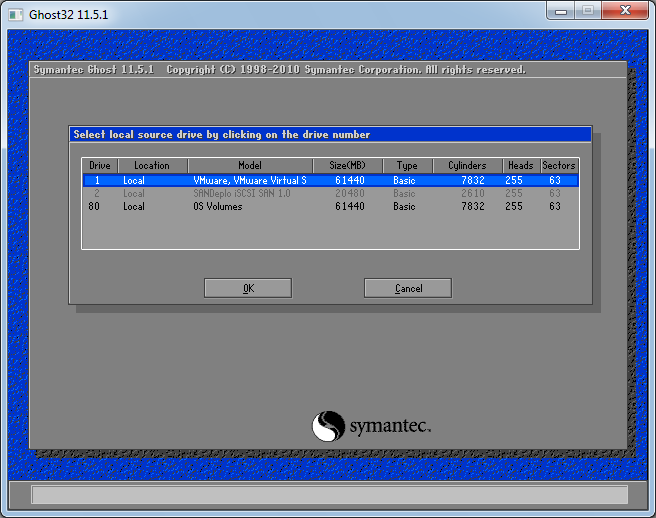

Select Source Disk

Press the OK button to continue.

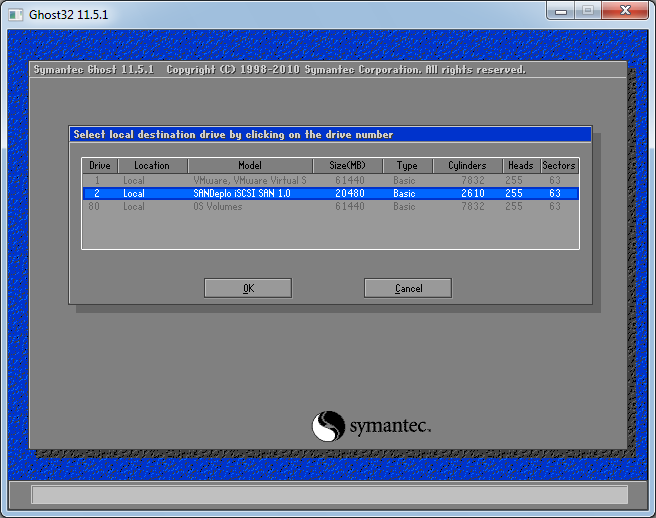

Select Target Disk.

As we need to perform a diskless boot, we choose SANDeploy iSCSI Disk.

Press the OK button to continue.

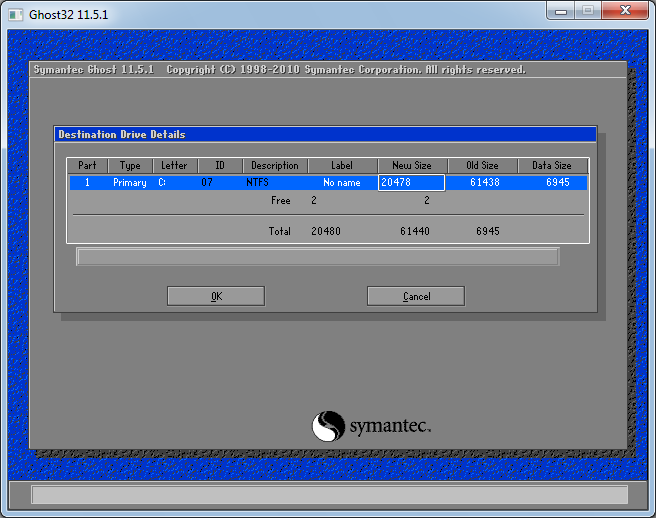

Specify New Partition Table.

Press the OK button to continue.

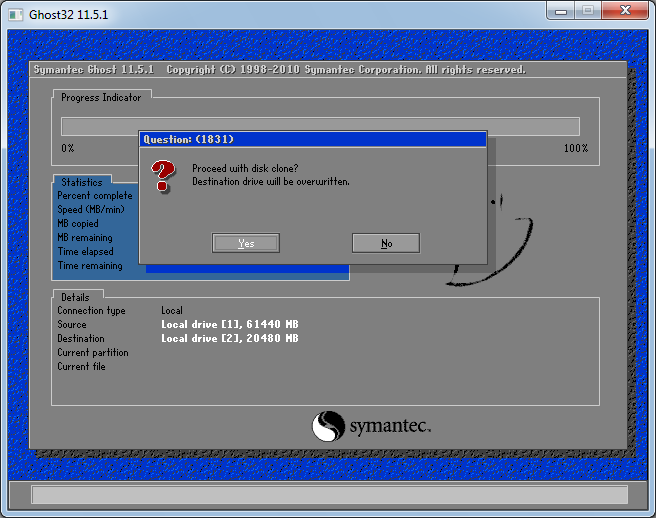

Press the Yes button to overwrite the iSCSI target disk.

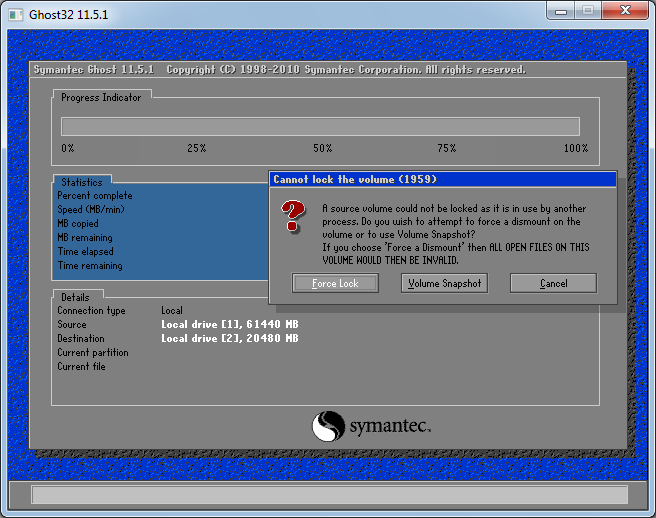

Press Force Lock or Volume Snapshot.

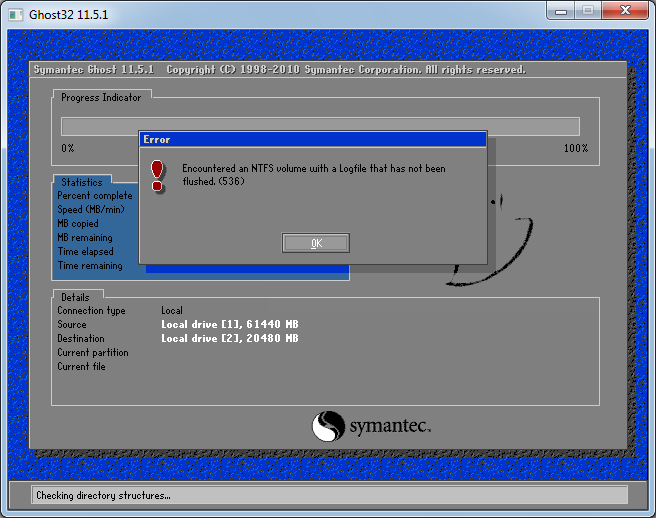

Press the OK button to continue.

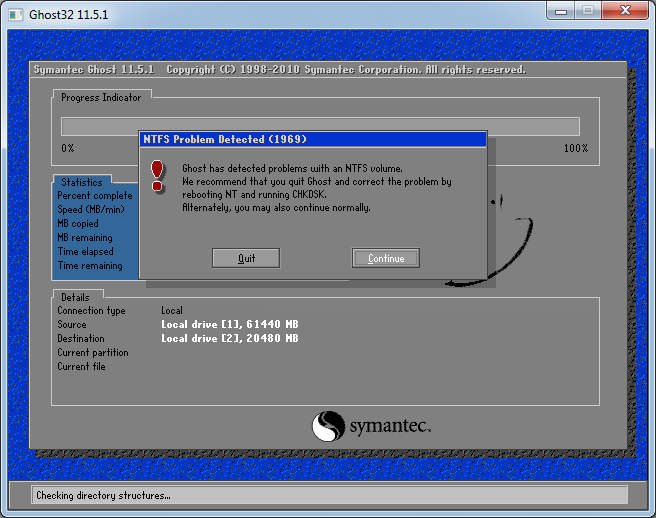

Press Continue.

Now cloning Windows 7 system to iSCSI disk.

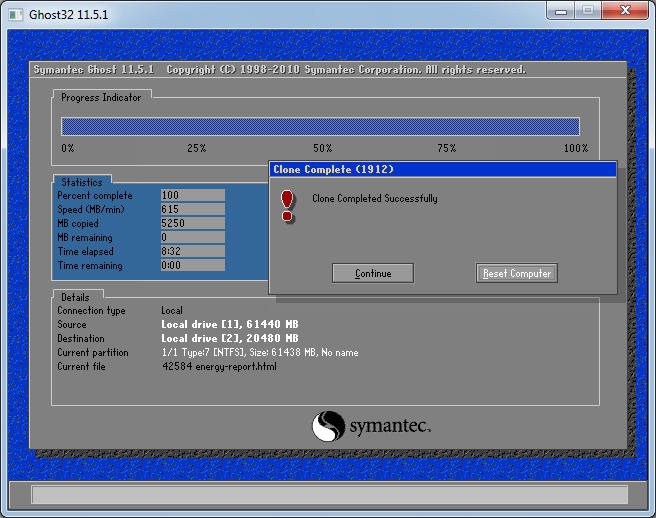

After clone completed, press Continue and log off from iSCSI target.
